Series: Expedition

Length: 16'

Width: 7' 2"

Weight: 176 lbs.

Tube Diameter: 20"

Number of Thwarts: 4

Bow Kick:

NRS measures kick from floor level to the top of the end tubes. AIRE measures this to the bottom of the end tubes.

30.5"

Stern Kick:

NRS measures kick from floor level to the top of the end tubes. AIRE measures this to the bottom of the end tubes.

29"

Number of Air Chambers: 9

Valve Type: Leafield - C7

Self Bailing: Yes

Type of Material: Pennel Orca

Weight/Denier of Tube Material:

Weight is ounces of a square meter of the material. Denier is the weight in grams of 9,000 meters of the thread used in the woven base fabric; an indicator of the fabric's strength.

48/1670

Weight/Denier of Floor Material:

Weight is ounces of a square meter of the material. Denier is the weight in grams of 9,000 meters of the thread used in the woven base fabric; an indicator of the fabric's strength.

48/1670

Number of D-rings: 14

Number of Handles: 8

Center Compartment Width:

The internal distance between the side tubes. Helpful for determining the size of coolers and dry boxes that will fit. Boats are hand-built and dimensions can vary 1”-2”. Measure your boat before purchasing containers.

45"

Suggested NRS Frame Width:

Our frames come in 6" width increments. The frame side rails should span from center-to-center of the raft tubes, or slightly beyond.

66"

Maximum Frame Length: 96"

Repair Kit: Yes

Warranty:

Some products have a fixed period of time that the manufacturer will cover them. Warranty for most NRS products is explained in our Rock Solid Guarantee (see at bottom of page).

10 Years Retail, 6 Years Commercial

Notes:

NRS and STAR boats are hand built by skilled craftsmen. Measurements on individual boats can vary from design specifications by up to +/- 2". Use these specs as guidelines and check your boat if the measurement is critical.

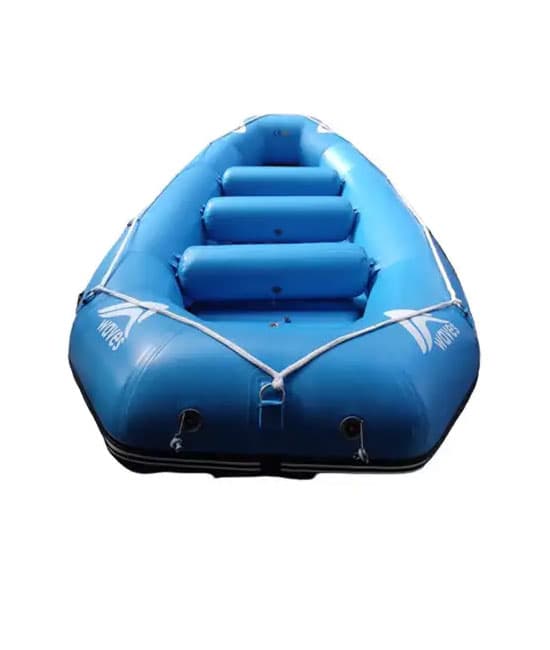

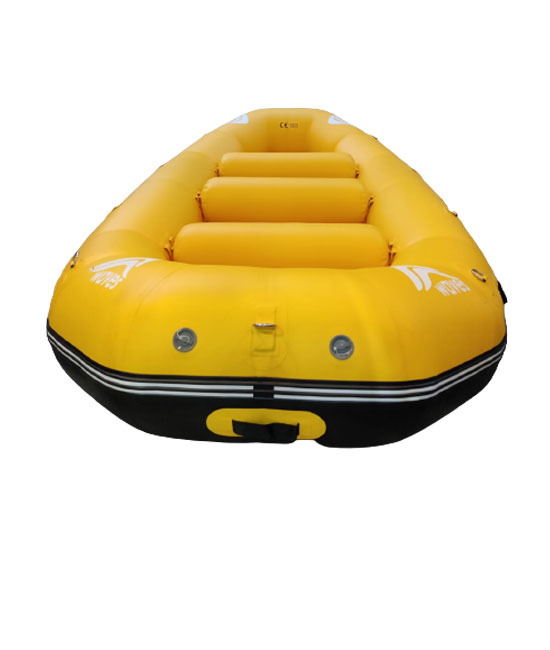

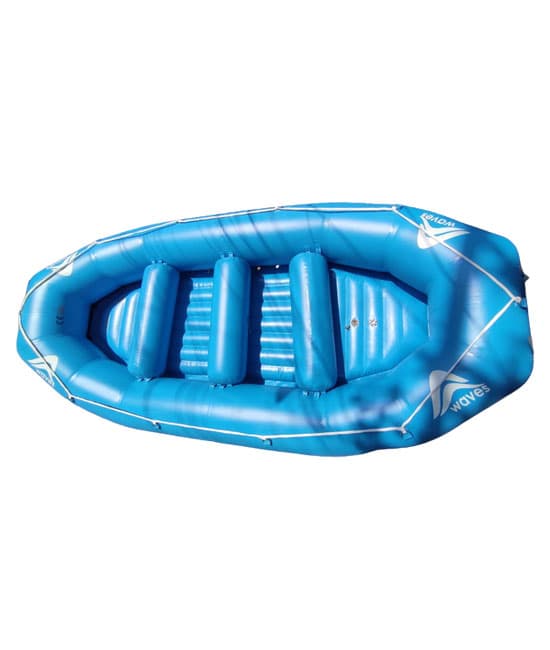

Waves TR-420 Raft
